Welded Cross

Description

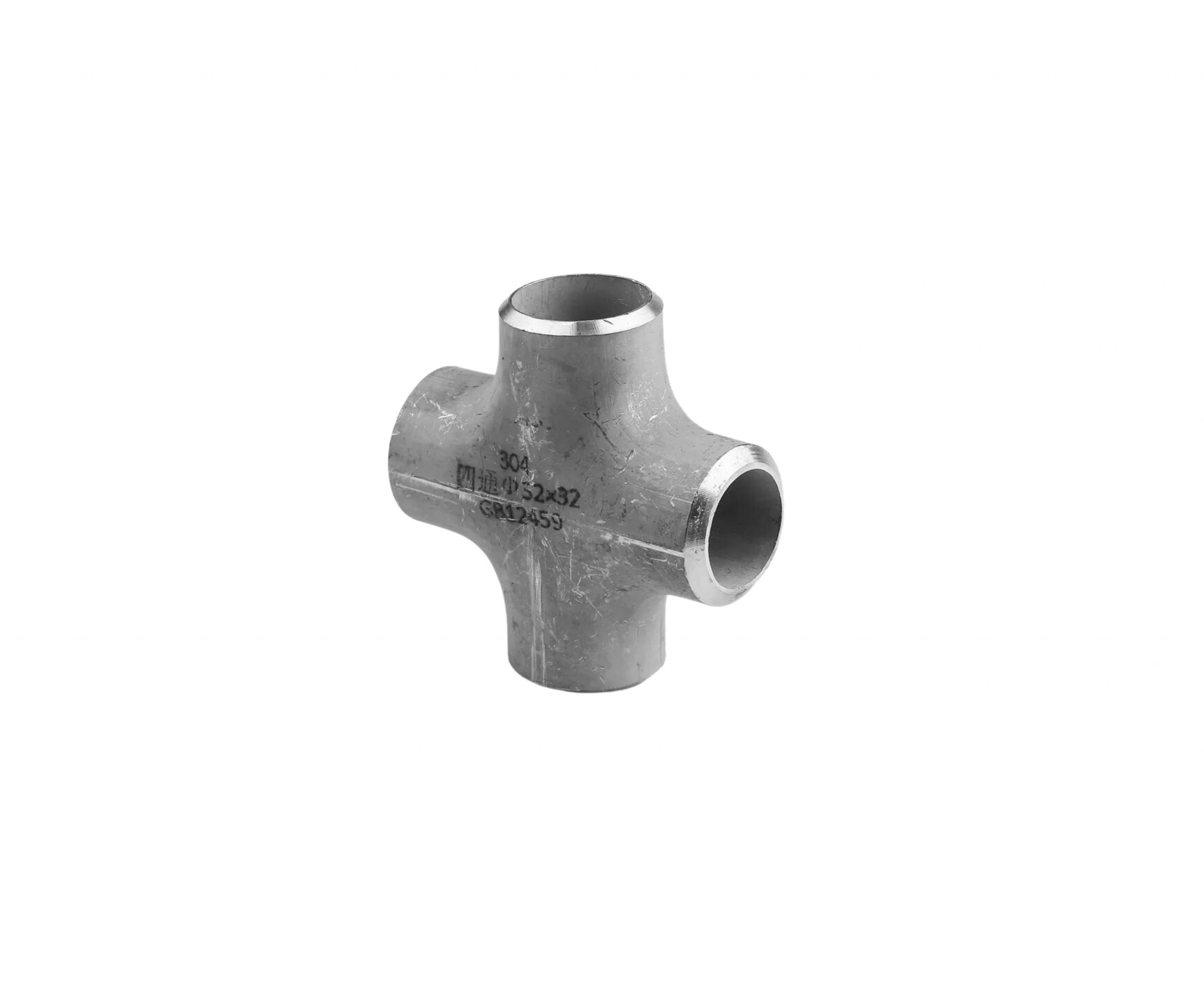

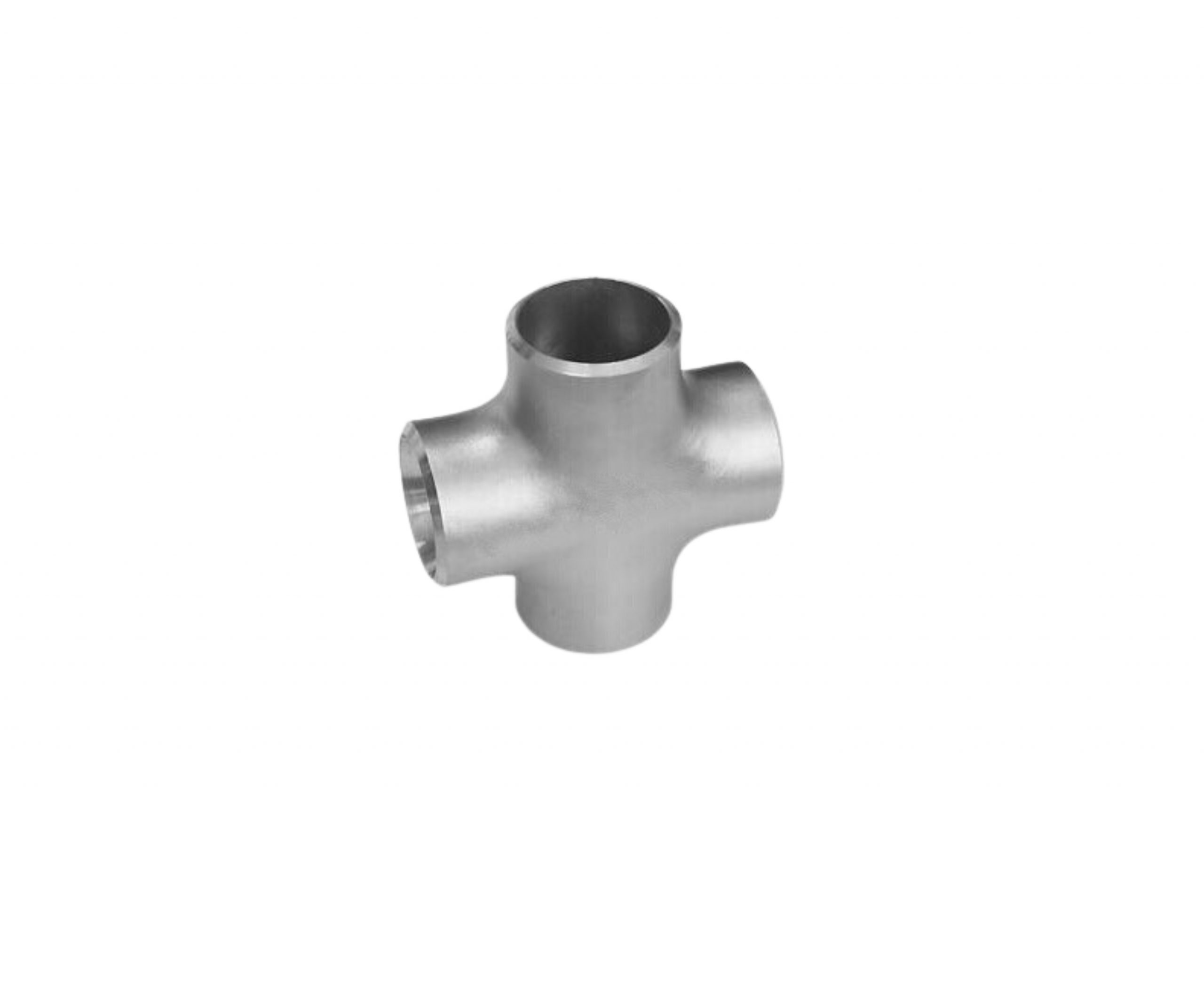

Welded Cross is a type of pipe connector with four branches, forming a cross-like shape. It is designed to connect four pipes together, allowing fluid to flow in different directions.

Here is the introduce about Welded Cross:

1. Structure and Design:
   • Welded Cross is typically made from the same material as the connected pipes to ensure compatibility and consistency in the pipeline system.
   • It consists of a central main body (vertical pipe) and four branches (horizontal pipes), forming a cross-shaped structure.
   • The branches of the Welded Cross usually have the same diameter, but they can also have different diameters depending on specific application requirements.
2. Welding Process:
   • The welding process for Welded Cross is similar to welding other pipe connectors and commonly uses welding methods such as arc welding (including manual arc welding or TIG welding).
   • Prior to welding, the pipes and the Welded Cross joint area typically require cutting and preparation for welding.
   • During the welding process, the joint area of the pipes and Welded Cross is heated and pressure is applied to melt and fuse them into a single welded seam.
   • After welding, the weld seam is often further ground and smoothed to ensure welding quality and appearance.
3. Advantages and Applications:
   • Strength and Durability: Welded Cross provides a strong and durable connection capable of withstanding high pressure and temperature conditions.
   • Fluid Distribution and Flow Control: Welded Cross facilitates fluid distribution and control, allowing fluid to flow among the four branches to meet specific process requirements.
   • Wide Applications: Welded Cross is widely used in various industries such as oil and gas, chemical, power generation, shipbuilding, for branching, crossing, and fluid distribution in pipeline systems.

When installing and welding Welded Cross, it is important to follow proper welding procedures and standards, ensuring proper alignment and preparation for welding to achieve reliable and leak-free welded connections. Additionally, selecting appropriate materials and specifications for Welded Cross according to specific application requirements is essential.
