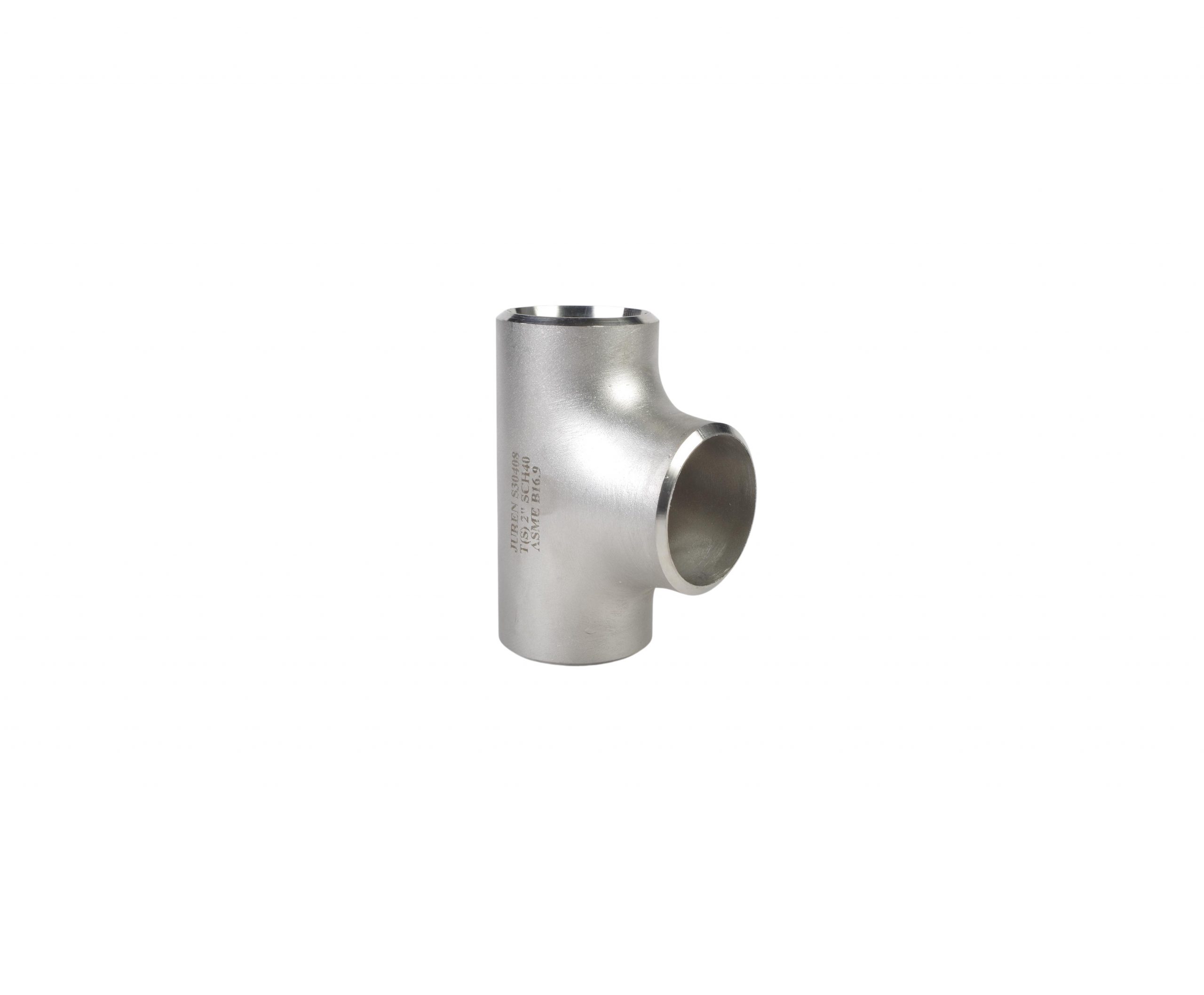

Butt Weld Tee

A welded tee, also known as a welding tee or welded three-way, is a pipe fitting used to create a T-shaped junction in a pipeline. It has three openings, where one inlet and two outlets allow the flow of fluids in different directions. Welded tees are commonly used in piping systems to distribute or combine fluids efficiently.

Data sheet PDF

Categories: ,


The main feature of butt weld tee

  1. Construction and Design:
    • Butt weld tee fittings are typically made from the same material as the pipes they are being connected to, ensuring compatibility and uniformity in the system.
    • They have a T-shaped design with three openings: one for the main run (the “top” of the T) and two for the branches.
    • Butt weld tees are available in different sizes and schedules to accommodate various pipe diameters and wall thicknesses.
  2. Butt Welding Process:
    • Butt welding involves the fusion of two pipe ends and the tee fitting by applying heat and pressure.
    • Prior to welding, the pipe ends and the fitting are beveled or chamfered to create a V-shaped groove.
    • The beveled pipe ends and the fitting are aligned, ensuring proper fit-up and alignment.
    • Heat is applied to melt the pipe ends and the fitting material, forming a molten pool.Butt Weld Tee
    • Pressure is then applied to the joint, forcing the molten material to fuse together and create a strong, leak-proof connection.
    • The welded joint is typically reinforced with additional welding passes to ensure strength and integrity.
  3. Advantages of Butt Weld Tee Fittings:
    • Strength and Durability: Butt weld tees provide a strong, permanent connection that can withstand high pressure and temperature conditions.
    • Smooth Flow Characteristics: The seamless nature of butt weld tees eliminates the internal turbulence caused by irregularities or restrictions in the flow path, ensuring smooth fluid flow.
    • Clean Appearance: Butt weld tees provide a clean and aesthetically pleasing appearance as there are no external threads or flanges.
    • Resistance to Leakage: The welded joint created by butt welding offers excellent leak resistance, minimizing the risk of fluid or gas leakage.
  4. Applications:
    • Butt weld tee fittings are commonly used in industries such as oil and gas, petrochemical, chemical processing, power generation, and shipbuilding.
    • They are utilized in pipeline systems for various applications including fluid distribution, branch connections, system diversions, and equipment connections.
    • Butt weld tees are suitable for conveying a wide range of fluids, such as water, oil, gas, chemicals, and slurries.

It’s important to follow welding procedures, standards, and guidelines, as well as adhere to safety protocols, when performing butt welding to ensure proper joint integrity and the overall reliability of the piping system.
