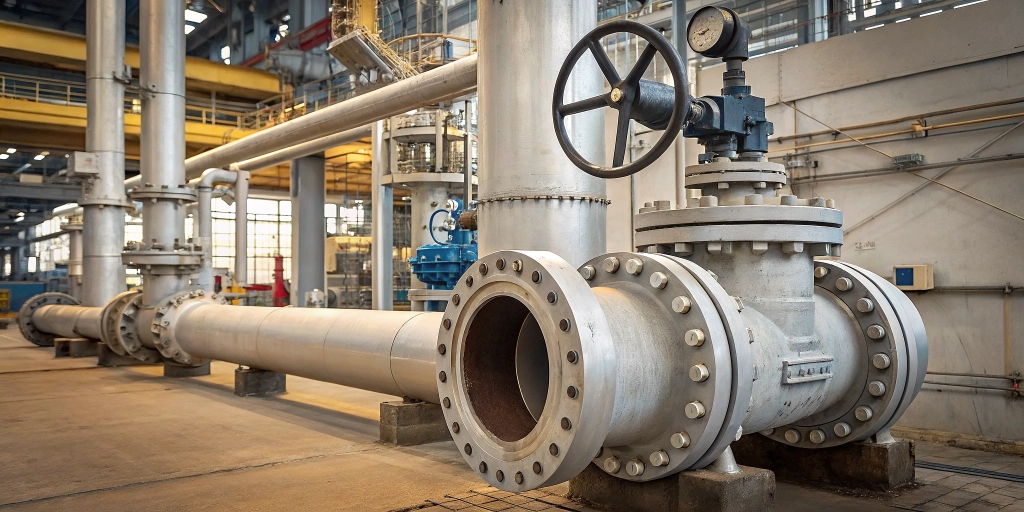

Are you struggling with choosing the right flange valve? It can be tough. I know this because I see clients facing this challenge daily. Let me help you understand better.
Selecting the perfect flange valve involves understanding your fluid type, pressure needs, system size, and potential for corrosion. I believe getting these basics right is key to a reliable and efficient piping system.
Making the wrong choice can lead to leaks, system failures, or unnecessary costs. Let’s explore how to pick the best flange valve for your specific needs, ensuring your operations run smoothly.
What Types of Fluids Are Flange Valves Compatible With?
Feeling unsure if a flange valve can handle your specific fluid? I often find that this is a common worry. It’s a valid concern that can impact your entire system.
Flange valves, depending on their design and material, can handle a wide range of fluids. From common liquids like water and oil, to gases, and even some slurries, I’ve seen them work effectively.
Flange valves are versatile components in many piping systems. Their compatibility with different fluids is a critical factor in selection. The “right” valve depends heavily on the fluid’s properties and the valve’s construction materials.
Common Fluid Categories
Fluids can be broadly categorized, and flange valves can be designed for many of them:
Liquids: This is perhaps the most common application. Flange valves handle water, oils, fuels, chemicals, and beverages. The key is to match the valve material with the liquid’s chemical properties. For example, I’ve supplied many stainless steel ball valves for food processing lines.
Gases: Natural gas, air, steam, nitrogen, and various industrial gases often flow through flange valves. For gases, especially at high pressures or temperatures, the sealing capability of the valve is very important. We must ensure tight shut-off to prevent dangerous leaks.
Slurries: These are mixtures of liquids and solid particles. Examples include mining slurries, wastewater sludge, or paper pulp. Valves for slurries need to resist abrasion and prevent clogging. Gate valves or specialized ball valves with robust designs are often my recommendation here.
Powders and Granular Materials: Some flange valves, like knife gate valves, are specifically designed to handle dry bulk solids. These materials can be abrasive and may require special seat designs.
Factors Affecting Fluid Compatibility
Several factors determine if a specific flange valve is suitable for your fluid:
Chemical Composition of the Fluid: Aggressive chemicals can corrode valve materials. We need to know if the fluid is acidic, alkaline, or contains solvents. For instance, I always ask about chloride content when stainless steel is considered, as chlorides can cause pitting corrosion.
Fluid Temperature: Temperature extremes can affect material strength, sealing performance, and corrosion rates. High temperatures might require metal seats instead of soft seats (like PTFE). Low temperatures can make some materials brittle.
Fluid Pressure: While discussed in more detail later, pressure interacts with fluid type. Some fluids become more aggressive at higher pressures.
Fluid Viscosity: Highly viscous fluids may require full-bore valves to minimize pressure drop and ensure smooth flow.
Presence of Solids: If solids are present, we must consider abrasion and the potential for clogging. A valve with a clearing action, like some ball or plug valves, might be better than a globe valve in such cases.
Specific Valve Type Considerations
Different types of flange valves have inherent strengths for certain fluids:
Gate Valves: Generally good for on/off isolation with minimal pressure drop. They can handle some slurries if designed appropriately, but are not ideal for throttling. I often suggest them for main water lines.
Globe Valves: Excellent for throttling and flow regulation. However, their S-shaped flow path can cause a higher pressure drop. They are suitable for clean fluids and gases where precise control is needed.
Ball Valves: Offer quick quarter-turn shut-off and good sealing. They are widely used for many liquids and gases. Full-port ball valves have low flow resistance. I’ve found them very reliable in oil and gas applications.
Butterfly Valves: Lightweight and cost-effective, especially in larger sizes. Suitable for liquids and gases, and some can handle slurries. Seat material is crucial for fluid compatibility and sealing.
Check Valves: Prevent backflow. The type of check valve (swing, lift, ball) chosen depends on the fluid and flow conditions. For example, a swing check is common for water.
Here’s a simple table to give a general idea:
| Fluid Type | Common Valve Material Examples | Key Considerations |
| Water (potable) | Ductile Iron, Bronze, Stainless Steel | NSF/WRAS certification for potable water |
| Seawater | Bronze, Monel, Duplex Stainless Steel | High corrosion resistance needed |
| Oil & Gas | Carbon Steel, Stainless Steel, Alloy Steel | API standards, fire-safe design |
| Acids | Alloy 20, Hastelloy, Lined Valves (PTFE) | Specific acid concentration & temp. |
| Steam | Carbon Steel, Stainless Steel (for high temp) | Pressure-Temperature rating, erosion |
| Abrasive Slurries | Hardened materials, Rubber-lined | Wear resistance, non-clogging design |
Choosing the right valve means carefully matching the valve’s capabilities with the fluid’s characteristics. As a manufacturer, I always advise my clients to provide as much detail about their process fluid as possible. This helps us recommend the most durable and safe option.
What Pressure Ratings Are Available For Flange Valves?
Worried about whether a valve can withstand your system’s pressure? This is a critical safety and operational concern I address frequently with engineers. It’s a big deal.
Flange valves come in various pressure ratings, typically defined by standards like ASME/ANSI, DIN, or JIS. These ratings indicate the maximum pressure a valve can safely handle at a given temperature.
Understanding pressure ratings is fundamental to selecting a safe and reliable flange valve. A valve that is not rated for the system’s operating pressure can lead to catastrophic failures, including leaks, ruptures, and potential harm to personnel and the environment. Manufacturers like us, Jiangsu Zhengfeng Valve, adhere strictly to these standards.
Understanding Pressure Classes
Pressure ratings are often grouped into “pressure classes.” These classes simplify valve selection by standardizing the pressure-handling capabilities.
ASME/ANSI Classes: In North America and many other parts of the world, ASME B16.34 (for valves) and B16.5 (for flanges) are key standards. Common classes include 150, 300, 600, 900, 1500, and 2500. These numbers are dimensionless but relate to the maximum allowable working pressure (MAWP) in psi at elevated temperatures. For example, a Class 150 carbon steel valve is generally rated for around 285 psi at ambient temperature, but this decreases as temperature increases. I always tell my customers that the class number is not the direct psi rating at all temperatures.
DIN (PN) Ratings: European standards often use PN (Pressure Nominal) ratings, such as PN10, PN16, PN25, PN40, PN64, PN100. The number indicates the approximate nominal pressure in bar (1 bar ≈ 14.5 psi) that the valve can withstand at a reference temperature (usually 20°C for water).
JIS (K) Ratings: Japanese Industrial Standards also have their own pressure classes, often denoted by “K” values like 5K, 10K, 20K, etc. These relate to pressure in kgf/cm².
It’s crucial to ensure that the valve’s flange drilling pattern (bolt holes, pitch circle diameter) matches the connecting pipe flanges. Different pressure classes usually have different flange dimensions to accommodate the varying stresses.
How Pressure Affects Valve Design
Higher pressure ratings mean the valve body, bonnet, and other components must be stronger and thicker.
Wall Thickness: Valve bodies for high-pressure service have significantly thicker walls to contain the pressure.
Bolting: Flange connections and bonnet-to-body connections will use more numerous and/or larger diameter bolts made of higher strength materials.
Material Strength: Materials with higher tensile strength are often required for high-pressure applications.
Sealing Mechanisms: Seals (gaskets, packing, seats) must be designed to remain effective under high pressure without extruding or leaking. For very high pressures, I’ve seen specialized seal designs being employed.
The Pressure-Temperature (P-T) Relationship
A critical concept is the Pressure-Temperature (P-T) rating. The maximum pressure a valve can handle decreases as the operating temperature increases. This is because materials lose some of their strength at higher temperatures.
Valve standards like ASME B16.34 provide detailed P-T tables for various material groups. When selecting a valve, you must consider both the maximum operating pressure and the maximum operating temperature of your system. The valve chosen must have a P-T rating that accommodates the worst-case scenario (highest pressure at highest temperature). I often have to remind clients to check these tables carefully, especially for steam or hot process applications.
Here’s a simplified example of how ASME pressure classes relate to approximate pressures:
| ASME Class | Approx. Max Working Pressure (Carbon Steel, Ambient Temp) | Typical Applications |
| 150 | ~285 psi (~19.6 bar) | Low-pressure water, oil, gas |
| 300 | ~740 psi (~51.0 bar) | Medium-pressure process lines, utility steam |
| 600 | ~1480 psi (~102 bar) | High-pressure steam, oil and gas production |
| 900 | ~2220 psi (~153 bar) | Very high-pressure applications, wellhead equipment |
| 1500 | ~3705 psi (~255 bar) | Severe service, high-pressure hydrocarbon processing |
| 2500 | ~6170 psi (~425 bar) | Extreme pressure applications, specialized processes |
Note: These are approximate values and vary with material and temperature. Always consult the relevant standard (e.g., ASME B16.34) for precise P-T ratings.
When a customer specifies a pressure, I always clarify if it’s the operating pressure, design pressure, or test pressure, and ask for the corresponding temperature. This ensures we supply a valve that is not just functional but also safe for its intended service life. At Jiangsu Zhengfeng Valve, our engineering team reviews these parameters very carefully for every order.
How Do You Choose The Right Size Flange Valve For Your System?
Are you worried about picking the wrong valve size? I know that an improperly sized valve can cause big headaches, from poor performance to system damage. It’s a common pitfall.
Choosing the right size flange valve means matching the valve’s flow capacity to your system’s requirements. It’s not just about pipe size; it’s about flow rate, pressure drop, and fluid velocity.
Selecting the correct flange valve size is crucial for optimal performance and longevity of both the valve and the entire piping system. It’s a more nuanced process than simply matching the valve size to the connecting pipe’s nominal diameter, though that’s often a starting point. I’ve seen many instances where a line-size valve was not the best choice.
Key Sizing Parameters
Several factors must be considered to size a valve correctly:
Flow Rate (Cv or Kv Value):
The most important factor is the required flow rate through the valve. This is often expressed as a Cv (flow coefficient) in US customary units (gallons per minute of water at 60°F with a 1 psi pressure drop) or Kv in metric units (cubic meters per hour of water at 20°C with a 1 bar pressure drop).
Manufacturers like us provide Cv/Kv values for different valve types and sizes at various opening positions (especially for control valves). I always emphasize that the required Cv should fall within the controllable range of the selected valve, typically between 10% and 90% of its maximum Cv for good control.
Pressure Drop (ΔP):
This is the difference in pressure between the valve inlet and outlet. Some pressure drop is necessary for flow, but excessive pressure drop wastes energy and can cause issues like cavitation or flashing in liquids, or choked flow in gases.
For on/off valves (gate, ball, plug), the goal is usually to minimize pressure drop when fully open.
For control valves (globe, some butterfly), a certain amount of pressure drop is designed to be taken across the valve to enable flow regulation. Typically, the valve should take a significant portion of the system’s dynamic pressure losses.
Fluid Velocity:
High fluid velocities can cause erosion, noise, and vibration, especially with abrasive fluids or in control valves.
Low velocities might lead to sediment deposition in lines carrying slurries.
There are generally recommended velocity limits for different fluids and pipe materials. We often check this as part of our sizing service for special applications.
Fluid Properties:
Density and Specific Gravity: These affect the mass flow rate and pressure drop calculations.
Viscosity: High viscosity fluids will have a higher pressure drop for a given flow rate. Correction factors are often applied to Cv calculations for viscous fluids.
Vapor Pressure (for liquids): If the pressure at the valve outlet drops below the fluid’s vapor pressure, flashing (liquid turning to gas) or cavitation (vapor bubbles forming and collapsing) can occur. This is damaging to valves. I’ve seen valve internals completely destroyed by unchecked cavitation.
Consequences of Incorrect Sizing
| Sizing Problem | Potential Consequences | My Experience |
| Oversizing | Poor control (for control valves), instability, seat wear, higher cost. | I once saw a large control valve “hunting” because it was too big for the low flow rate it needed to manage. |
| Undersizing | High pressure drop, insufficient flow, erosion, noise, cavitation/flashing. | A client complained about not getting enough product through a line; the undersized valve was the culprit. |
Using Sizing Charts and Software
Valve manufacturers typically provide sizing charts or sophisticated software to help select the correct valve. These tools use standard formulas (like the ISA S75.01 for control valves) and incorporate fluid properties.
For simple on/off applications with low-pressure drop requirements, selecting a valve the same size as the pipeline (line-size valve) is often acceptable, especially if the valve is a full-bore type (e.g., full-port ball valve, gate valve). However, even then, it’s good practice to check if the resulting velocity is within limits.
For control valves, the sizing process is more critical. The valve needs to operate effectively over a range of flow conditions. I always advise customers to provide their minimum, normal, and maximum flow conditions, along with corresponding pressures and temperatures. This allows us to select a valve that provides good rangeability and control.
Steps I Recommend for Sizing:
Gather all process data: Fluid type, temperature, inlet pressure, outlet pressure (or desired pressure drop), minimum/normal/maximum flow rates, specific gravity, viscosity.
Calculate the required Cv/Kv: Use appropriate formulas or software.
Select a valve type: Based on function (on/off, throttling), fluid compatibility, and other system requirements.
Choose a preliminary valve size: Consult manufacturer catalogs for Cv/Kv values.
Verify:
Is the calculated Cv within the valve’s controllable range (e.g., 10-90% open for control valves)?
Is the pressure drop acceptable?
Is the fluid velocity within limits?
Is there a risk of cavitation, flashing, or choked flow? If so, are there anti-cavitation trims or other solutions available?
What is the noise level prediction?
At Jiangsu Zhengfeng Valve, we often assist our customers with valve sizing, especially for challenging applications. Providing accurate process data is the first and most important step from the customer’s side. This collaborative approach ensures the valve performs as expected.
What Materials Are Best For Flange Valves In Corrosive Environments?
Are you concerned about your valves failing due to corrosion? It’s a major issue I help customers combat regularly. The right material can make all the difference.
For corrosive environments, materials like stainless steels, high-nickel alloys (e.g., Monel, Hastelloy), titanium, or lined valves (PTFE, PFA) are often best. The choice depends heavily on the specific corrosive agent, its concentration, and temperature.
Selecting the appropriate material of construction for flange valves in corrosive environments is paramount to ensure safety, longevity, and operational reliability. Corrosion can lead to leaks, valve failure, and costly downtime. As a manufacturer, I’ve seen firsthand how a well-chosen material can extend service life significantly, even in very aggressive media.
Understanding Corrosion
Corrosion is the degradation of a material due to chemical or electrochemical reactions with its environment. There are many forms:
General (Uniform) Corrosion: Material loss occurs evenly across the exposed surface. This is predictable and can often be managed by selecting a material with a known low corrosion rate.
Localized Corrosion:
Pitting Corrosion: Small, deep holes form on the metal surface. This is common in materials like stainless steel exposed to chloride-containing solutions.
Crevice Corrosion: Occurs in stagnant microenvironments, like under gaskets or in threaded connections.
Stress Corrosion Cracking (SCC): Brittle fracture occurs under the combined action of tensile stress and a specific corrosive environment. Certain stainless steels are susceptible in chloride environments.
Galvanic Corrosion: Occurs when two dissimilar metals are in electrical contact in a corrosive electrolyte. The more active metal corrodes preferentially.
Erosion-Corrosion: The combined effect of mechanical wear (erosion by fast-flowing or particle-laden fluids) and chemical attack.
Common Corrosion-Resistant Materials for Valves
Stainless Steels:
304/304L SS: Good general corrosion resistance to atmospheric conditions and many organic chemicals. However, susceptible to chloride pitting and SCC. I generally don’t recommend it for seawater or strong acids.
316/316L SS: Contains molybdenum, which significantly improves resistance to pitting and crevice corrosion, especially in chloride environments. My go-to for many chemical applications and mildly corrosive services.
Duplex Stainless Steels (e.g., 2205, 2507): Offer higher strength and excellent resistance to chloride SCC, pitting, and crevice corrosion. Often used in desalination, offshore oil and gas, and chemical processing.
Super Austenitic Stainless Steels (e.g., 904L, Alloy 20): Provide even better resistance than 316L in more aggressive environments like sulfuric acid.
High-Nickel Alloys:
Monel (Nickel-Copper): Excellent resistance to hydrofluoric acid, seawater, and many reducing conditions. We’ve supplied Monel valves for marine applications.
Hastelloy (Nickel-Molybdenum-Chromium, e.g., C-276, C-22): Offer outstanding resistance to a wide range of aggressive chemicals, including strong oxidizing and reducing acids, and chloride solutions. Often the choice for very severe services, though they are more expensive.
Inconel (Nickel-Chromium): Known for high-temperature strength and resistance to oxidation and carburization. Also good in some corrosive media.
Titanium:
Excellent resistance to oxidizing media, particularly nitric acid, wet chlorine, and chloride solutions (including seawater). Lightweight and strong. However, it can be susceptible to attack by reducing acids and dry chlorine.
Non-Metallic Materials & Linings:
Plastics (e.g., PVC, CPVC, PP, PVDF): Cost-effective for certain low-pressure, low-temperature applications involving acids, bases, and salts. However, they have temperature and pressure limitations and lower mechanical strength.
Lined Valves (e.g., PTFE, PFA, ETFE, Rubber): Combine the strength of a metal body (typically carbon steel or ductile iron) with the superior chemical resistance of a non-metallic liner. This is often a very cost-effective solution for highly corrosive fluids. I’ve found PTFE-lined ball valves and butterfly valves to be very popular for aggressive chemical handling.
PTFE (Polytetrafluoroethylene): Inert to almost all chemicals up to its temperature limit (around 200-260°C).
PFA (Perfluoroalkoxy): Similar chemical resistance to PTFE but can be melt-processed, allowing for thicker, more uniform linings.
Rubber Linings (e.g., EPDM, Neoprene): Good for abrasion resistance and certain chemical services, like water treatment or dilute acids.
Factors Influencing Material Selection
The “best” material is always specific to the application. Key factors include:
Corrosive Agent(s): Identify all chemicals present.
Concentration: Corrosion rates can change dramatically with concentration.
Temperature: Higher temperatures generally accelerate corrosion.
Pressure: Can influence stress-related corrosion mechanisms.
Fluid Velocity & Presence of Solids: Can lead to erosion-corrosion.
Aeration/Oxygen Content: Can significantly affect the corrosivity of some media.
Cost and Availability: Exotic alloys are expensive. Sometimes a less resistant but easily replaceable material or a lined valve is more economical.
Here’s a general comparison of some material groups for corrosive service:
| Material Group | General Corrosive Environments | Relative Cost | Key Advantages | Key Limitations |
| Carbon Steel | Non-corrosive fluids, oils, some mild chemicals (with inhibitors) | Low | Low cost, good strength | Poor resistance to most acids, bases, chlorides |
| Austenitic SS (316L) | Many organic/inorganic chemicals, mild chlorides, food/pharma | Medium | Good general corrosion resistance, hygienic | Susceptible to pitting/SCC in higher chlorides, some acids |
| Duplex SS | Seawater, brackish water, process chemicals with chlorides | Medium-High | High strength, excellent chloride SCC & pitting resistance | More difficult to machine/weld than austenitic SS |
| High Nickel Alloys | Strong acids (H2SO4, HCl), high temp chlorides, severe service | High | Excellent resistance to wide range of aggressive media | High cost, availability |
| Titanium | Oxidizing acids (HNO3), wet chlorine, seawater | High | Excellent in specific oxidizing media, lightweight | Poor in reducing acids, dry chlorine, high cost |
| Lined Valves (PTFE) | Most acids, bases, solvents (within temp limits) | Medium | Excellent chemical inertness, cost-effective for severe media | Temperature/pressure limits, potential liner damage |
At Jiangsu Zhengfeng Valve, we always ask for detailed fluid composition data from our clients when corrosive service is expected. Sometimes, corrosion testing or referring to extensive corrosion data tables (like those from NACE International) is necessary to make the optimal material choice. It’s an investment that pays off in system integrity and safety.
Conclusion
Choosing the right flange valve involves fluid, pressure, size, and material considerations. Get these right for a reliable system.
